Dry milling with a plus. K5+

The best seller, plus extra spindle power.

Visibly different, noticeably better: plus extra power for hard materials.

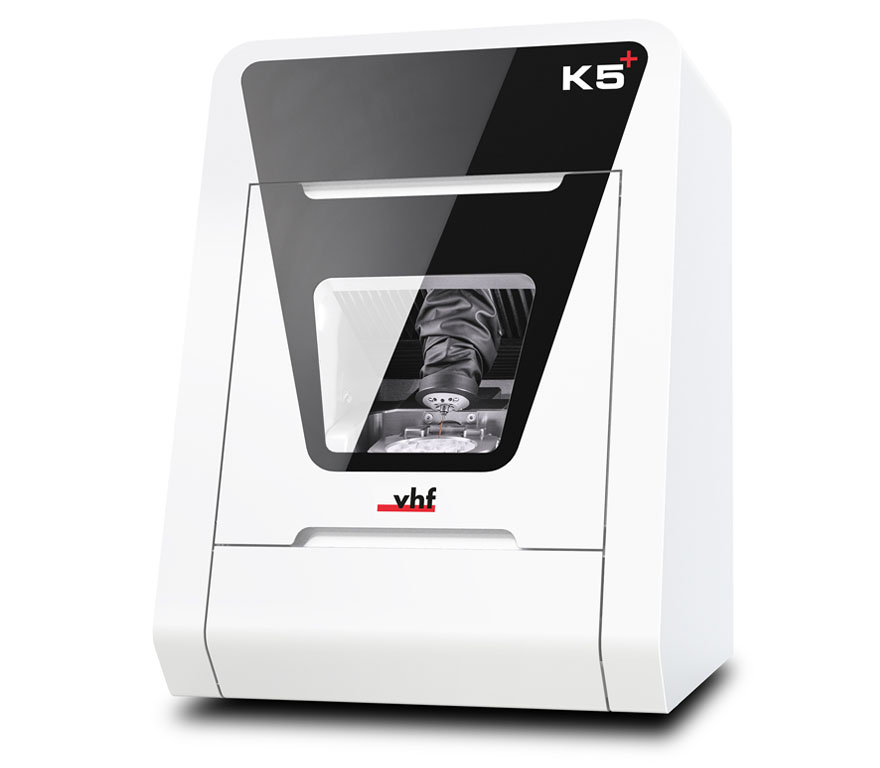

After its face lift, the K5+, our proven top selling five axis milling machine, has an all-new look. And, as if that wasn’t enough: we added an over 60 % more powerful spindle as well. That means you can always go all out when milling, making it much easier to machine tough materials like cobalt-chrome. Thanks to its proven reliability, the K5+ is a true driver of performance in any laboratory.

Axes

Disc

Blocks

Tools

Axes

Disc

Blocks

Tools

“The K5+ gives me the accuracy and speed for crown and bridge, removable and implant cases that I need in my busy lab. I cannot afford to compromise, I need to be as efficient as possible. With the vhf K5+ I found the right tool to succeed.”

Amir JuzbasicCEO Lintec Dental Labs

“I can do 80% of my work with the K5+.”

Sandra BraunMaster dental technician and owner of INDIVIDUALIS

Highlights

Power package with lots of features

The K5+ machines a particularly wide range of materials and indications in disc form with a thickness of up to 40 mm. That means it helps make your everyday work easier with lots of innovative technologies. Two particularly useful features are the DIRECTDISC Technology for single-handed, tool-free disc fixation, and an integrated ionizer that neutralizes most of the static charge of plastic chips – practically eliminating your cleaning work.
Thanks to its highly stable machine bed structure, made of a solid cast body, the machine generates less vibrations and delivers first-class surface quality.

Keeping it all together

Tools and material blanks are stored in the machine’s practical accessory drawer, so they are always close at hand. An Administrated Tool Board for milling tools is also integrated into the drawer. Its numbered slots are managed using the DENTALCAM software, creating an active tool pool of a total of 30 tools.

Quick start

Revolutionary technologies such as DIRECTDISC Technology for one-handed and tool-free blank clamping and an integrated ionizer, which largely neutralizes the static charge of plastic chips such as PMMA and thus considerably reduces the cleaning effort, help you to achieve this.

CoCr prefab abutments

You can also easily produce prefab abutments made of CoCr and block materials with the right holders.

Discs up to a thickness of 40 mm

The K5+ processes discs up to a thickness of 40 mm. An ionizer neutralizes the charge of plastic chips.

Features

Exceptional precision

Restorations in ultra HD
Premium spindle with four-fold ball bearing made of hybrid ceramic for the highest concentricity
3 μm repetition accuracy

Tremendous stability

Mills the toughest materials on the market, incl. CoCr
Powerful 820 W, 60,000 rpm spindle
Heavy industrial quality for maximum rigidity
Solid cast body for the lowest vibrations

Absolute independence

Sheer unlimited material accessibility in 98 mm disc format, separate block and prefab abutment holders available
Covers the broadest range of indications, due to ± 35° rotation angle in the 5th axis, and blanks up to 40 mm thickness (metals up to 18 mm)

Outstanding reliability

100 % engineered and manufactured in Germany
Sophisticated sealing air concept to protect mechanics, electronics, and spindle
24-month warranty

Highly economical

Ionizer and improved air circulation for easy machine cleaning
DIRECTDISC Technology for tool-free disc fixation – insert your workpieces in seconds
Automatic changer for 16 tools
Webcam in the working chamber for remote monitoring and service
Ethernet interface for stable connection
Very easy operation via DENTALCAM software with DIRECTMILL – included in scope of delivery and without license fees

Did you know?

vhf has been using high-quality 4-fold hybrid ceramic bearings for over ten years, particularly for machining metals. For you, this means a significantly longer spindle service life, higher surface quality and noticeably better accuracy of fit.

You choose: material, manufacturer, indication

Anything goes: discs, blocks, and abutments

composites	plastics	glass ceramics	zirconia
titanium	CoCr

Maximum freedom of indication

crown/bridge	inlay/onlay	abutment	telescopic crown
model plate	model cast	occlusal splint	model tooth
implant bar	veneer	drilling template	denture
secondary crown	screw-retained bridge	protrusion splint

Be sure to review local and/or national regulations and/or regulations by other authorized organizations or entities (e.g. professional associations, health authorities).

Download

PDF – Fact Sheets

Technical Data

GENERAL

Fields of application

Dry machining

Materials

Plastic materials, wax, zirconia, composites, CoCr, model plaster
– Blanks, height 10-40 mm (CoCr up to 18 mm), diameter 98.5 mm
– Blocks up to 45 × 20 × 20 mm

Indications

Crowns, bridges, fully anatomical crowns and bridges, inlays, onlays, abutments, telescopic crowns, models, model castings, occlusal splints, implant bars, veneers, drilling templates, dentures, table tops etc.

BASE SYSTEM

Construction

Machine bed made of solid cast aluminum body

Housing

Sheet steel housing, white high-gloss lacquer finish with working chamber flap and accessories drawer

Number of axes

Linear axes X-/Y-/Z-axis

Precision ball screws, rolled version · motors with resolution < 1 μm · ground precision guides made of high-alloyed steel · repetition accuracy ± 0.003 mm

Rotary axis A-axis

Backlash-free Harmonic-Drive® with the highest angular precision · rotation angle: 360°, infinite

Rotary axis B-axis

Precision ball screw with rotary transmission · rotation angle: ± 35° · axis arrangement in the workpiece

Control unit

5-axis simultaneous control electronics with continuous path progression and dynamic pre-calculation · hardware-based real-time operating system with standardized instruction set · FPGA-integrated processor · updateable hardware · real-time path calculation via dedicated hardware engines in the FPGA · four-quadrant control of the motors for particularly smooth running · multiple analogue and digital I/Os for controlling the peripherals · integrated inverter for synchronous and asynchronous motors, electronic gate detection · Ethernet and USB interface

Lighting

RGB LED lighting with status display in the working chamber

Camera system

Integrated in the working chamber for easy remote support and possibility of internal recording

ATB

Integrated Administrated Tool Board (ATB) for 30 tools

SPINDLE

General

High-frequency spindle, synchronous with pneumatic tool clamping · sealing air to prevent debris from entering · automatic cone cleaning

Speed

Up to 60,000 rpm

Power

Peak power (Pmax): 820 watts · nominal power (S6): 680 watts · continuous power (S1): 550 watts

Bearing

4-fold hybrid ceramic ball bearing · concentricity deviation at inner cone < 3 μm

Collet

Stainless steel collet for tools with 3 mm shank diameter and max. 40 mm total length

AUTOMATION

Tool change

Tool magazine for 16 tools · length measurement and tool breakage monitoring via precision measuring key · access via working chamber flap, safety-locked

PROCESSING MODES

Dry

Air nozzles on the spindle · hose connection for external suction unit on the side of the housing · vacuum sensor for monitoring the suction unit · 24 V switch output for controlling suction units · ionizer with 2 ion nozzles · disc change in DIRECTDISC Technology

CONNECTION REQUIREMENTS

Compressed air

6 bar: 50 l/min to 8 bar: 64 l/min (without ionization) · 6 bar: 80 l/min to 8 bar: 102 l/min (with ionization) · air purity according to ISO 8573-1:2010

Power

100-240 volts · 50/60 Hz, 640 watts

Extraction System

Extraction filter class M, 2,500 l/min extraction capacity at 220 hPa

Data

10/100/1000 Mbit/s BaseT port (auto-sensing) Ethernet via RJ-45 socket

ENVIRONMENTAL CONDITIONS

Operating temperature

Between 10 °C and 32 °C

Air moisture

Max. 80 % (relative), non-condensing

APPROVALS

All models

CE, VDE

North America model

UL, FCC (according to ANSI/UL 61010-1) (pending)

DIMENSIONS & WEIGHTS

Dimensions (W/D/H)

455 × 550 × 630 · 455 × 550 × 711 mm with open flap and drawer

Footprint (W/D)

372 × 258 mm

Weight

91 kg

SCOPE OF DELIVERY

CAM Software

DENTALCAM software included

Holder systems

3-fold block holder

Accessories

Spindle service set · calibration set incl. stirrup measuring screw · working area crevice nozzle · tool magazine inserts (2 pieces) · spare screws · tool magazine cover · Torx and Allen wrenches · emergency release key · drill bit (tool positions) · measuring pin · compressed air hose with pressure reducer · power cable · Ethernet network cable · carrying aid for transporting the machine · operating manual
